SAE 100 RA/EN 853 ST Hydraulic Hose -Letone

LT682

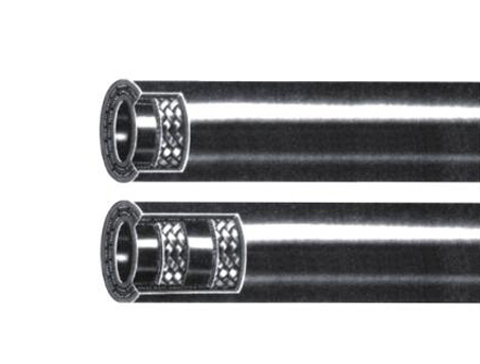

SAE 100 RA/EN 853 ST Hydraulic Hose

Applications：suitable for conveying petroleum oil and water-based and biodegradable hydraulic oil, to meet industrial demands for General

Tube：black heat-resistant oil synthetic rubber

Reinforcement：one or two layers of super flexible high-strength steel wire

Cover：black oil-resistant, weather-resistant, wear-resistant synthetic rubber

Temperature range：-40 ° C ~ + 135 ° C (-40 ° F ~ + 275 ° F)

Online

Hotline ：

400-6191-666

Parameter

SIZE (Dash)	SIZE (in.)	I.D.(mm)		O.D.(mm)	Max.W.P.	Min.B.P.	Min.B.R.
SIZE (Dash)	SIZE (in.)	Min	Max	Min	(MPa)	(MPa)	(mm)
5	3/16-1	4.6	5.4	13.5	25.0	100.0	90
6	1/4-1	6.2	6.9	16.7	22.5	90.0	100
8	5/16-1	7.7	8.5	18.3	21.5	85.0	115
10	3/8-1	9.3	10.1	20.6	18.0	72.0	130
13	1/2-1	12.3	13.5	23.8	16.0	64.0	180
16	5/8-1	15.5	16.7	27.0	13.0	52.0	200
19	3/4-1	18.6	19.8	31.0	10.5	42.0	240
25	1-1	25.0	26.4	39.0	8.8	35.0	300
32	1 1/4-1	31.4	33.0	47.5	6.3	25.0	420
38	1 1/2-1	37.7	39.3	54.0	5.0	20.0	500
51	2-1	50.4	52.0	68.2	4.0	16.0	630
5	3/16-2	4.6	5.4	16.7	41.5	165.0	90
6	1/4-2	6.2	6.9	18.3	40.0	160.0	100
8	5/16-2	7.7	8.5	19.9	35.0	140.0	115
10	3/8-2	9.3	10.1	22.2	33.0	132.0	130
13	1/2-2	12.3	13.5	25.4	27.5	110.0	180
16	5/8-2	15.5	16.7	28.6	25.0	100.0	200
19	3/4-2	18.6	19.8	32.6	21.5	85.0	240
25	1-2	25.0	26.4	40.8	16.5	65.0	300
32	1 1/4-2	31.4	33.0	52.4	12.5	50.0	420
38	1 1/2-2	37.7	39.3	58.8	9.0	36.0	500
51	2-2	50.4	52.0	71.4	8.0	32.0	630

LTBP681-CW

Car wash hose

Inner Layer：Nylon
Reinforcement：4-layre of spiral high tensile steel wire
Outer Layer：Black or colored polyurethane
Temperaturn Range：-40℃~+85℃(-40℉~+185℉)

Inquiry

LT681

SAE 100RAT/EN853 SN Hydraulic Hose

Tube：black oil-resistant synthetic rubber
Reinforcement：one or two layers of super flexible high-strength steel wire
Cover：black oil-resistant, weather-resistant, wear-resistant synthetic rubber
Temperature range：-40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F)

Inquiry

LT682

SAE 100 RA/EN 853 ST Hydraulic Hose

Tube：black heat-resistant oil synthetic rubber
Reinforcement：one or two layers of super flexible high-strength steel wire
Cover：black oil-resistant, weather-resistant, wear-resistant synthetic rubber
Temperature range：-40 ° C ~ + 135 ° C (-40 ° F ~ + 275 ° F)

Inquiry

LT683

EN857 SC Wire Braid Hydraulic Rubber Hose

Tube：black oil-resistant synthetic rubber
Reinforcement：one or two layers of super flexible high-strength steel wire
Cover：one or two layers of super-soft high-strength steel wire
Temperature：-40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F)

Inquiry
