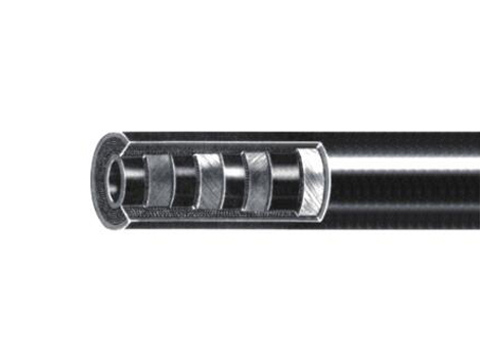

LT SA5992

Super Artery EXCEEDS ISO18752-BC/CC/DC

Product application：suitable for large-scale long-range machinery such as excavators or demanding environments.

Inner rubber layer：Neoprene synthetic rubber, suitable for hydraulic oil that can be degraded

Reinforcement layer：two layers of steel wire braiding (1/4" ‒5/16"), pulse ≥500,000 times, four layers of steel wire winding (3/8"‒1 1/4"), pulse ≥1 million times, six layers Wire winding (1 1/2"‒2"), pulse ≥ 1 million times

Outer layer：non-stripping, wear-resistant, weather-resistant synthetic rubber

Temperature range：-40℃ to +121℃ (-40℉ to +250℉)

Low bending：the bending radius is reduced by 48% compared with ISO18752 standard; it is reduced by 50% compared with SAE standard

High pressure：pressure complies with ISO18752-BC/CC/DC standard

Online

Hotline ：

400-6191-666

Parameter

model	ISO18752			Inner diameter of hose （mm)	Outer diameter of hose （mm)	Working pressure （MPa)	Minimum burst pressure （MPa)	Minimum bending radius（mm)	Weight （kg/m)	Connector series
model	5992 standard tube	5992AR wear-resistant tube AR	5992SAR super wear-resistant tube	Inner diameter of hose （mm)	Outer diameter of hose （mm)	Working pressure （MPa)	Minimum burst pressure （MPa)	Minimum bending radius（mm)	Weight （kg/m)	Connector series
SA5992-1/4"-2	BC	CC	CC	6.3	15	40	160	50	0.283	31 series
SA5992-5/16"-3	BC	CC	CC	8	16.3	35	140	60	0.326	31 series
SA5992-3/8"-4	BC	CC	CC	10	18.7	35	140	63	0.524	31 series
SA5992-1/2"-4	CC	CC	DC	13	21	35	140	90	0.701	41 series
SA5992-5/8"-4	CC	CC	DC	16	23.9	35	140	100	0.817	41 series
SA5992-3/4"-4	CC	CC	DC	19	28	35	140	120	1.143	41 series
SA5992-1"-4	CC	CC	DC	25	35.5	35	140	150	1.649	41 series
SA5992-11/4"-4	CC	CC	DC	32	44.5	35	140	210	2.255	41 series
SA5992-11/24"-6	CC	CC	DC	38	52.5	35	140	225	4.348	61 series
SA5992-2"-6	CC	CC	DC	51	67.5	35	140	318	6.121	61 series

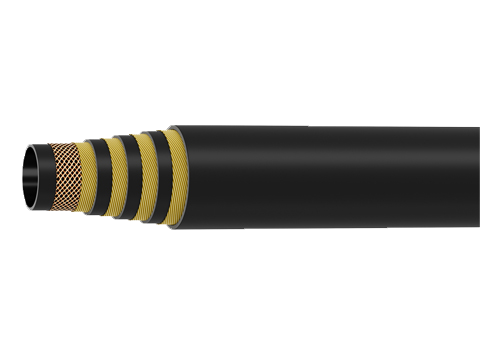

LTSA599-FH

Super Artery super soft hose

Inner Layer：Oil resistant synthetic rubber
Reinforcement：4-layered high-strength super-flexible steel wire
Outer Layer：Wear-resistant, weather-resistant synthetic rubber (weather-resistant for 5 years, warranty for 3 years)
Characteristic：Low bending-bending radius is 50% lower than DIN EN853 standard; high-pressure-pressure is 30%~40% higher than DIN EN853 standard; long life.
Hose Fitting：It adopts high-quality carbon structural steel, the core material is 45# steel, the nut material is 35# steel, and the sleeve is 20# steel, which conforms to the national, British and American national standards. The joint sealing is made of hydrogenated nitrile rubber (10 years of aging resistance) Above) Use the one-piece hose connector specially provided by Litong, with pulse >= 1 million times.
Temperature Range：-40℃~+85℃(-40℉~+185℉)H

Inquiry

LT593

Super High Pressure Resistant Wire Spiral Hydraulic Rubber Hose

Tube： oil-resistant black synthetic rubber
Reinforcement：six - layer high strength steel wire , inner diameter 25
Cover： Black synthetic rubber, oil resistance, wear resistance, weather resistance
Temperature:：-40℃～+121℃ ( -40℉～+250℉)

Inquiry

LT SA5993

Super Artery EXCEEDS ISO18752 DC

Inner rubber layer：Neoprene synthetic rubber, suitable for hydraulic oil that can be degraded
Reinforcement：Four layers of steel wire winding (1/4"‒1"), pulse ≥1 million, six layers of steel wire winding (1 1/4"‒2"), pulse ≥1 million times
Outer layer：non-stripping, wear-resistant, weather-resistant synthetic rubber
Temperature range：-40°C to +121°C (-40°F to +250°F)
Low bending：the bending radius is reduced by 27% compared with the ISO18752 standard; it is reduced by 37% compared with the SAE standard
High pressure：pressure conforms to ISO18752 DC standard

Inquiry

LTSA599

Super Artery Steel Wire Spiral Hydraulic Hose

Tube：CR/NBR synthetic rubber
Reinforcement：Multispiral high tensile super flexible steel wire, four plies≥ 1 million impulse cycles
Cover：Skiving-free black narrow cloth texture hose cover made of anti-aging synthetic rubber
Temperature Range：-40℃~+121℃(-40℉~+250℉)
Standard：Comply with ISO18752-DC standard
Features： Low bending radius; high pressure ; long service life ( weather resistant for more than 5 years and warrantied for 2 years with Letone specific hose connectors)
