150PSI 2-Ply Abrasive Material Blast Hose -Letone

LT1301

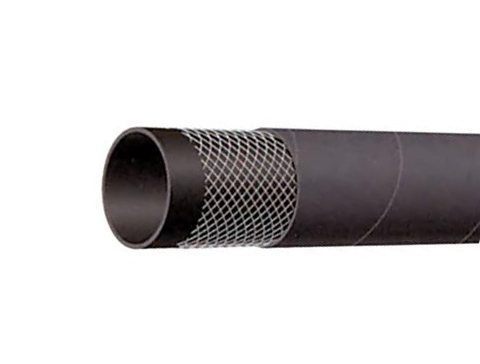

150PSI 2-Ply Abrasive Material Blast Hose

Application：Designed to transport abrasive, sandblast, mud, sand, cement, gravel, etc

Inner Tube：Black NR conductive rubber-provides excellent abrasion resistance

Reinforcement：High tensile textile coreds-2-ply construction

Outer Layer：Black SBR/NR blend-abrasion and ozone resistant -pin pricked

Working Pressure：10Bar

Temperature Range：-30℃（-22°F）~+80℃（+176°F）

Online

Hotline ：

400-6191-666

150PSI 2-Ply Abrasive Material Blast Hose

Parameter

Specifications
Series	ID（in.）	ID（mm）	OD（in.）	OD（mm）	Wall Thickness（mm）	MaxRec.WP(PSI)	Weight（kg/m）
LT1301-050	1/2	13	1.06	27	0.212	150	0.51
LT1301-125	11/4	32	1.89	48	0.240	150	1.15

Note: errors should be based on RMA-Class 311-A standard Blasting Data Guide Use the appropriate nozzle size for the appropriate hose diameter to prevent premature hose wear.

Blasting Data Guide
Series	UB8	UB7	UB6	UB5	UB4
NOZZLE SIZE	1/2	7/16	3/8	5/16	1/4
CFM @ 100PSI	350	260	200	150	90
AIR HOSE	2	1 1/2	1 1/2	1 1/4	1 1/4
S.B.HOSE SIZE	11/2	1 1/2	1 1/4	1 1/4	1
MAT.LB/HR	2250	1750	1260	900	540

LT1301

150PSI 2-Ply Abrasive Material Blast Hose

Inner Tube：Black NR conductive rubber-provides excellent abrasion resistance
Reinforcement：High tensile textile coreds-2-ply construction
Outer Layer：Black SBR/NR blend-abrasion and ozone resistant -pin pricked
Working Pressure：10Bar
Temperature Range：-30℃（-22°F）~+80℃（+176°F）

Inquiry

LT1311

Special wear-resistant hose for super wear-resistant steelmaking

Inner Tube：UPE
Reinforcement：High tension textile thread
Outer Layer：Black wear-resistant, weather-resistant synthetic rubber
Temperature Range：-40℃~80℃（-40°F~176°F）

Inquiry

LT788

UPE SUPER ABRASION RESISTANT BLAST HOSE

Inner Layer： Super abrasion resistance,flexibly, anti-adhesion UPE layer
Reinforcement：High tensile synthetic steel cord spiral
Outer Layer： Black SBR synthetic rubber, with high wear resistance and excellent anti-aging performance, wrapped cover
Temperature Range： -30℃ to +85℃
Features：Light weight, easy to operate, with excellent wear resistance performance, The abrasion performance of inside UPE liner is 3-5 times than abrasion resistant rubber, Which with good yield strength performance, more safety for users.
Standard：DIN53516

Inquiry

LT1310

75PSI Heavy Weight Dry Power Delivery Hose

Inner Tube：Black NR conductive electrostatic rubber-composite abrasive cutting
Reinforcement：High tensile textile cords
Outer Layer：Black SBR/NR conductive rubber-abrasion resistant, oxidation resistant
Working Pressure：5Bar(75PSI)
Temperature range：-30℃（-22°F）到+80℃（+176°F）

Inquiry
